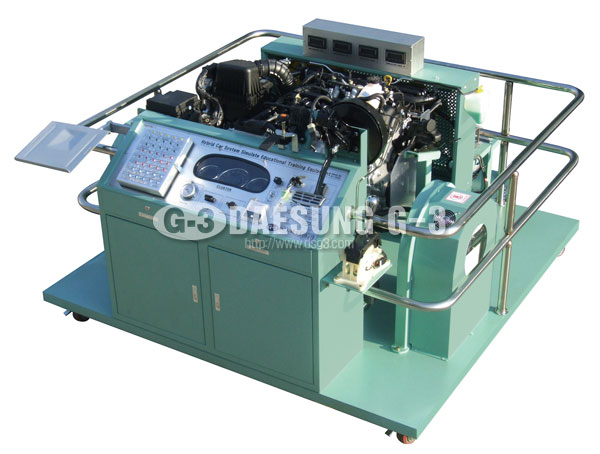

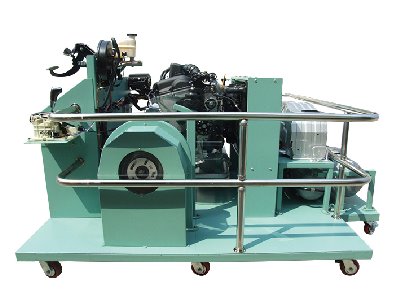

16-2-060 Hybrid Engine Simulator System Educational Training Equipment G-162302
  • 16-2-060
  • Hybrid Engine Simulator System Educational Training Equipment
  • G-162302

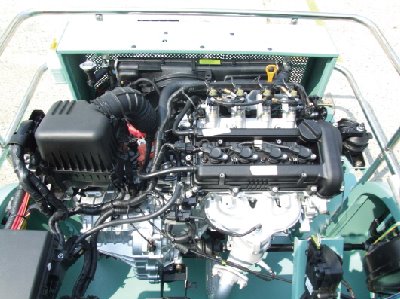

■  1.6 liter, L4 cylinder, MPI, DOHC, 114HP, LPI(Liquid Petroleum Injection) Hybrid Engine. CVT(Continuously Variable Transmission), electric motor 15kW, FF type/ Hyundai motor co. soft type, Avante (Kia Forte) hybrid system.

■  Components; Hybrid control unit(HCU), Inverter(HPCU-MCU, HCU, LDC), high voltage battery(HV BATT), battery management system(BMS).

■  Fuel, cooling, intake and exhaust system of engine, instrument panel, shift lever, accelerator, wheel, etc are installed. Operating type.

■  Digital voltmeter and ammeter are installed at charging and discharging circuits of motor, generator and battery for education.

■  It is an educational equipment like actual vehicle for education the quality of hybrid system.

■  It has an educational training function that controls the condition of input and output by installing a fault control module to ECU, TCU circuit.

■ DM System-Diagnosis and fault control module - Fault controls for circuits are set by the switch. - AL sculpture box, fault control part can be locked with cover.

■  By installation of check terminal to circuit, input and output data can be measured and trained conveniently with multimeter or oscilloscope.

■  It is composed as an efficient system for automotive engineer qualifying education and inspection training such as engine tune-up, exhaust gas, ignition timing, intake pipe, vacuum level, cylinder pressure, radiator, timing, fan belt, fuel, oil, electrolyte, charging, moving circuit, etc.

■  Electronic-control function of EOBD and instruction of diagnostic system and data can be trained through DLC and DM.

■  By installing check terminal for each sensor, it is convenient to use tester and it protects the circuit.

■  Instruments, vacuum gauge, fuel pressure gauge, voltmeter, DLC, power source jack, key, accelerate pedal, battery, LPG gas tank, engine, radiator protector, fire extinguisher, a book holder etc. are installed.

■  Control panel has an excellent durability with aluminum plate, CNC engraver and color.

■ Powder-coated, 2-door cabinet stainless molding, 4 wheels stand

■ An user's manual and a cover

■ Patent 10-1256563 : Hybrid vehicle simulation training equipment

■  Registration Number of Utility Model 20-0439940 : Automobile training educating equipment holder

■ Design 30-0575944 : Fuel tank for a vehicle, installation

■ Utility Model 20-0440071 : Carrying board of articulated

■ Avante LPI Basic Model : G-162301
