■ Gasoline 1.5 liter, 50HP electric 40HP Hybrid PRIUS by Toyota Motor Co.

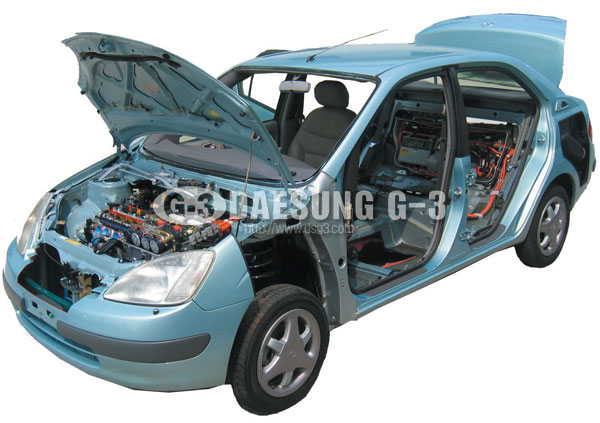

■  It is an educational system of automotive structure for display by precisely cross-sectioning body and chassis.

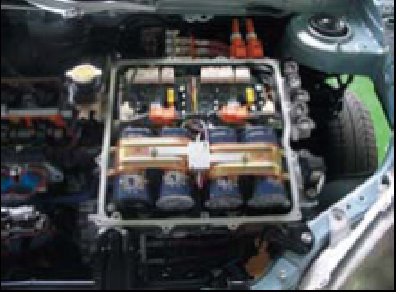

■  It is effective for understanding and explaining functions of hybrid system's engine, transmission, electric motor, power cable, battery, charging system, inverter, converter, etc.

■ Design and operating principles of vehicle can be explained systematically.

■  It is an educational equipment of power train system including engine,  transmission, differential gear, drive shaft and tire by cross-sectioning  components.

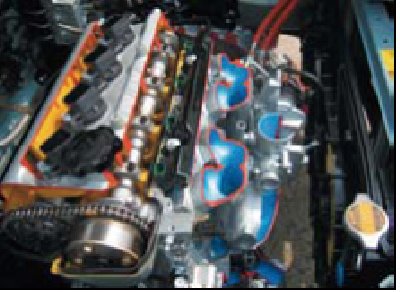

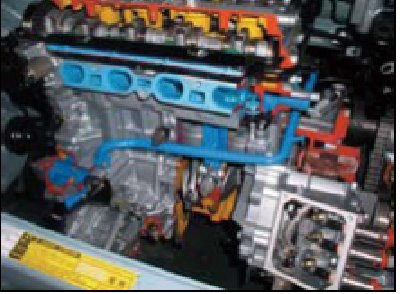

■  Internal structure and operating principle of piston, valve, crank, etc. can be educated effectively by cross-sectioning cylinder and head of 4 stroke 4 cylinder engine.

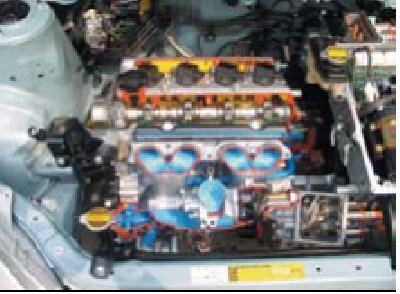

■  Block, head, starting motor, electric generator, air conditioning compressor,  fuel, cooling system, lubricating system, manifolder, muffler, and actual body are cross-sectioned and operated for better educational quality.

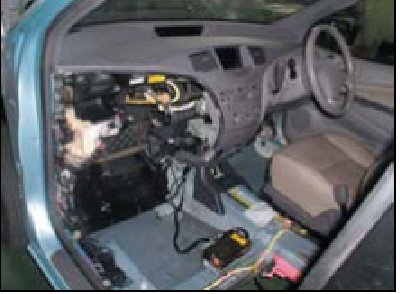

■  Structure and operating principle of auxiliary device, steering, suspension systems, and actual body frame can be demonstrated.

■  The model is painted by our company's detailed specifications for painting to enhance the educational quality. Cut face: dark red, intake system: sky blue, exhaust system: pink, lubricating system: yellow, cylinder block: light black, cylinder head: silver, gasket: white.

■ Exterior is painted by diamond clear and parts are coated for durability.

■  4 jack stands for safe and effective education, motor speed control type structure.

■ Product size≒(L)445*(W)173*(H)149㎝.  Wt≒1.330kg

■  Control box, single phase 220V of motor, 0~10rpm, two lamps,     additional safety device

■  Patent Number 10-0835696 : Cycle displaying method of automobile engine and apparatus thereof / installation

■ An user's manual and a cover

■ Hyundai Hybrid 2.0ℓ Hard Type : G-161341
